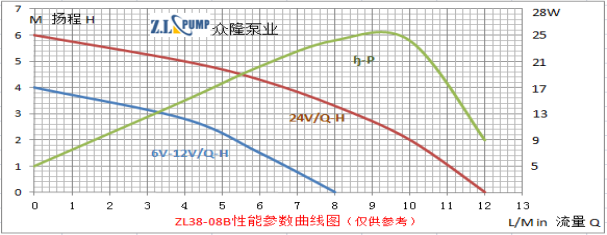

| Model | ZL38-08B | ||||||||
| Working Voltage Range | DC: 6-24V （If solar photovoltaic panel is used for power supply, parameters shall be provided: rated voltage, open circuit voltage, short circuit current） | ||||||||
| Rating Power | 6V：2-12W / 12V：3-18W / 24V：5-25W | ||||||||
| Static Water Head | 1-5.5M | ||||||||
| Static flow rate | 5-11Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | ||||||||
| Working Environment | Applicable liquid pH: weak acid, neutral, weak base. Non diving use | ||||||||
| Max Noise | Under normal working condition, the water pump is 1m away from the tester ＜35Decibel | ||||||||
| Max Working Temperature | Normal start delay 5-20 seconds； Under normal temperature environment, the temperature of the aqueous medium≤90℃（Aluminum alloy shell） | ||||||||
| Application | Solar hot water cycle, hot water shower, heat engine water cycle heat dissipation, small fountain, aquarium, etc | ||||||||
| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length (mm) | Width (mm) | Height (mm) | OD (inch) | ID (mm) | OD (inch) | ID (mm) | 進(jìn)、Outlet Thread Positive spin Standard threaded pipe | ||
| 96 | 48 | 90 | IP67 | G1/2〞standard Thread tube | φ13 | G1/2〞standard Thread tube | φ13 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
